Ball Valves

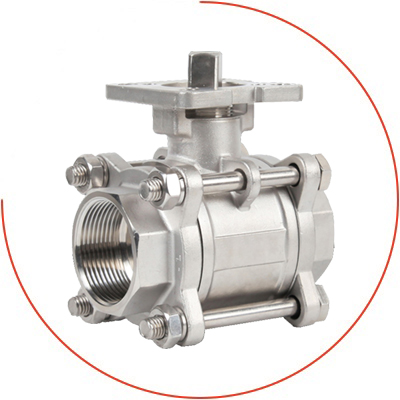

Series 2662 - Ball Valves
Thread or Welded

Orifice sizes:DN10 ... 100
Body material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Ball material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Selector shaft material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Ball seal:PTFE
Stem seal:FKM
Medium pressure:Max. 63 bar
Process connection:Thread / Weld end

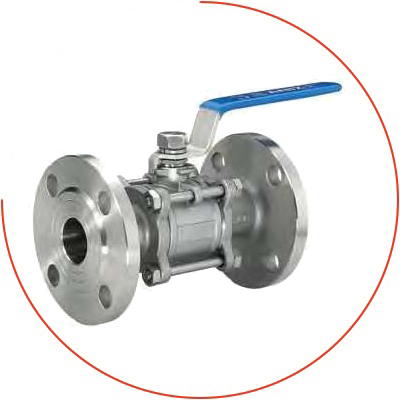

Series 2663 - Ball Valves
Flanged

Orifice sizes:DN15 ... 300
Body material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Ball material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Selector shaft material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Ball seal:PTFE
Stem seal:FKM
Medium pressure:Max. 63 bar
Process connection:Flange

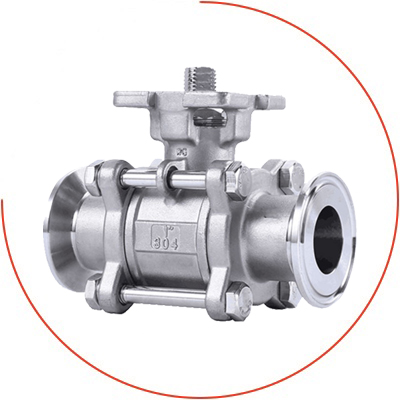

Series 2691 - Ball Valves
Sanitary Applications

Orifice sizes:DN15 ... 100
Body material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Ball material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Selector shaft material:stainless steel 304 / stainless steel 316 / stainless steel 316L
Ball seal:PTFE
Stem seal:FKM
Medium pressure:Max. 63 bar
Process connection:Tri-Clamp / Weld end
