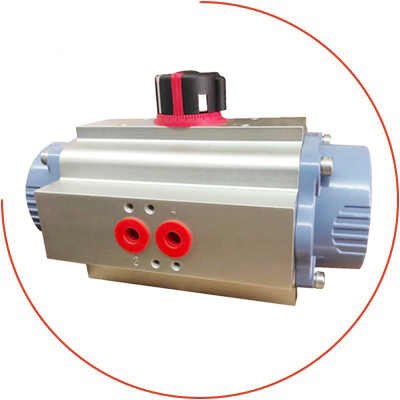

Series 2641 - Pneumatic Rotary Actuator |
For mounting of quarter turn valves |
|
Circuit functions:Double acting / Spring return |
Actuator material:Aluminium alloy |
Piston material:Aluminium |
Seal material:NBR / FPM / Silicon |
Rotation:-5° ... 95° |
Control pressure:5 ... 8 bar |
Interface for pilot valve:NAMUR type |
Stem connection:Square or polygonal shape ISO 5211 |
|
