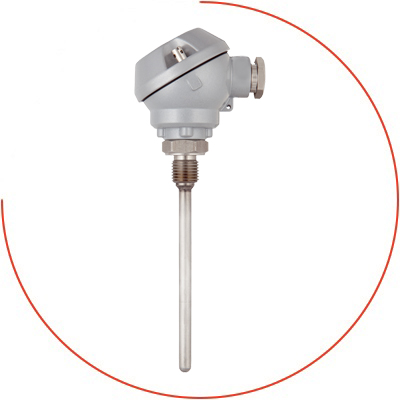

Series 8420 - Resistance Thermometer |
Threaded |
|
Measuring range:-50 ... +200 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100、4 ... 20 mA |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|

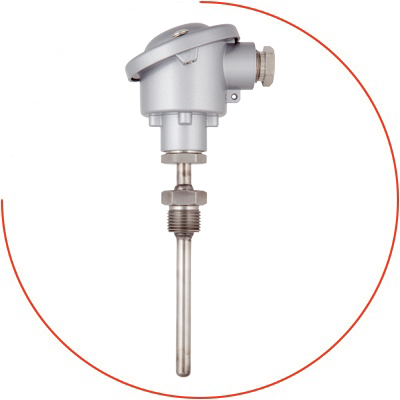

Series 8421 - Resistance Thermometer |
Threaded、Sensor element replaceable |
|
Measuring range:-50 ... +200 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100、4 ... 20 mA |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|

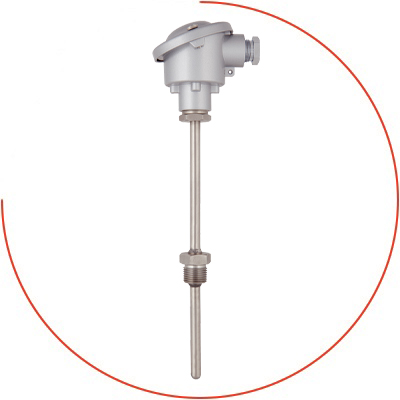

Series 8422 - Resistance Thermometer |
Threaded、With extension tube、Sensor element replaceable |
|
Measuring range:-50 ... +400 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100、4 ... 20 mA |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|

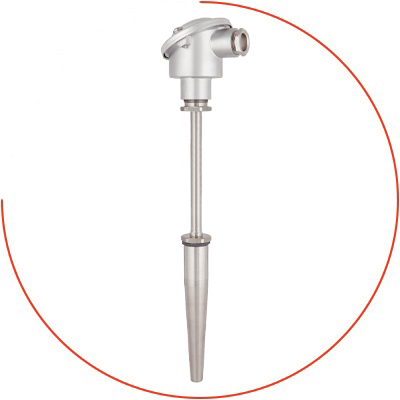

Series 8423 - Resistance Thermometer |
Welded、Sensor element replaceable |
|
Measuring range:-50 ... +600 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100、4 ... 20 mA |
Wetted parts:Stainless steel 316 |
Process connection:welded |
|
|
|
|
|

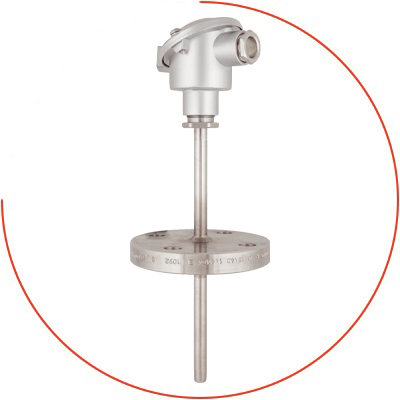

Series 8424 - Resistance Thermometer |
Flanged、Sensor element replaceable |
|
Measuring range:-50 ... +600 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100、4 ... 20 mA |
Wetted parts:Flange:Stainless steel 316;Stem:316 |
Process connection:Flanged |
|
|
|
|
|
Series 8430 - Resistance Thermometer |
Compact design |
|
Measuring range:-50 ... +200 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100 |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|

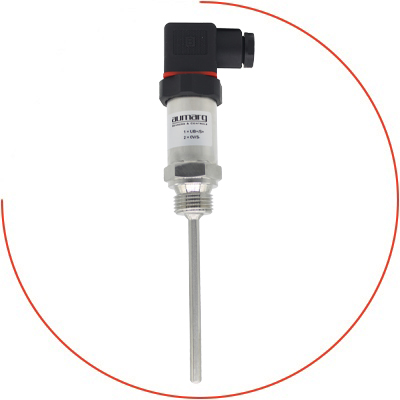

Series 8431 - Resistance Thermometer with Transmitter |
Compact design |
|
Measuring range:-50 ... +200 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:4 ... 20 mA |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|
Series 8432 - Resistance Thermometer |
For Sanitary Applications |
|
Measuring range:-50 ... +200 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:Pt100 |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:Tri-Clamp 1 1/2" |
|
|
|
|
|

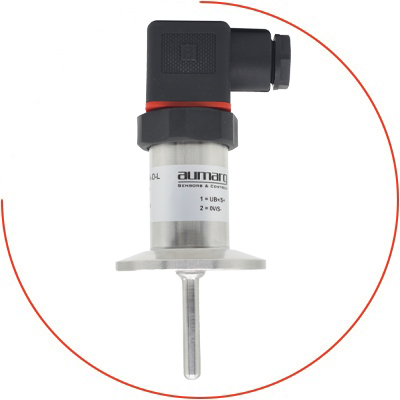

Series 8433 - Resistance Thermometer with Transmitter |
For Sanitary Applications |
|
Measuring range:-30 ... +150 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:4 ... 20 mA |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:Tri-Clamp 1 1/2" |
|
|
|
|
|

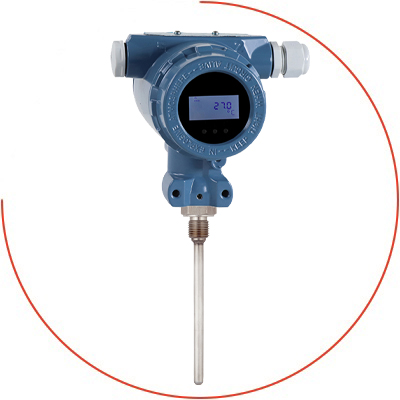

Series 8481 - Resistance Thermometer with Digital Display |
Threaded、Intelligent |
|
Measuring range:-50 ... +200 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:4 ... 20 mA、4 ... 20 mA + HART、4 ... 20 mA + RS485 |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|

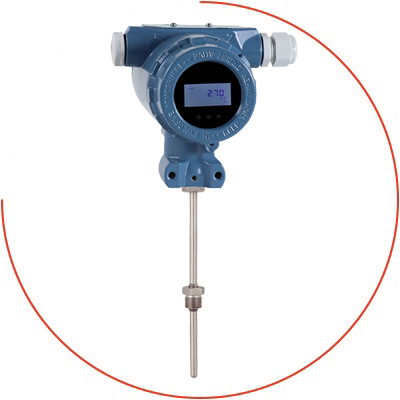

Series 8482 - Resistance Thermometer with Digital Display |
Threaded、With extension tube、Intelligent |
|
Measuring range:-50 ... +400 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:4 ... 20 mA、4 ... 20 mA + HART、4 ... 20 mA + RS485 |
Wetted parts:Process connection:Stainless steel 316;Stem:316 |
Process connection:G1/2 (others on request) |
|
|
|
|
|
|
|
|
|
Series 8484 - Resistance Thermometer with Digital Display |
Flanged、Intelligent |
|
Measuring range:-50 ... +600 °C |
Sensor element:Pt100 |
Accuracy:Class B、Class A |
Output signal:4 ... 20 mA、4 ... 20 mA+HART、4 ... 20 mA+RS485 |
Wetted parts:Flange:Stainless steel 316;Stem:316 |
Process connection:Flanged |
|
|
