Series 8311 - Pressure Transmitter |
Ceramic thick-film sensor |
|
Measuring range:0 ... 1 bar to 0 ... 400 bar |
Accuracy:0,5% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/4 (others on request) |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|

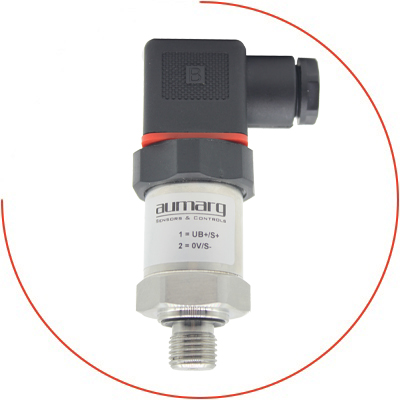

Series 8312 - Pressure Transmitter |
Ceramic thick-film sensor |
|
Measuring range:0 ... 0,4 bar to 0 ... 400 bar |
Accuracy:0,25% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/4 (others on request) |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|
Series 8321 - Pressure Transmitter |
Diffused silicon piezoresistive sensor |
|
Measuring range:0 ... 0,1 bar to 0 ... 1000 bar |
Accuracy:0,5%、0.25% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/2 (others on request) |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|
Series 8322 - Pressure Transmitter(Vacuum) |
Diffused silicon piezoresistive sensor |
|
Measuring range:-1 ... 0 bar to -1 ... 0 ... +5 bar |
Accuracy:0,5%、0.25% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/2 (others on request) |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|

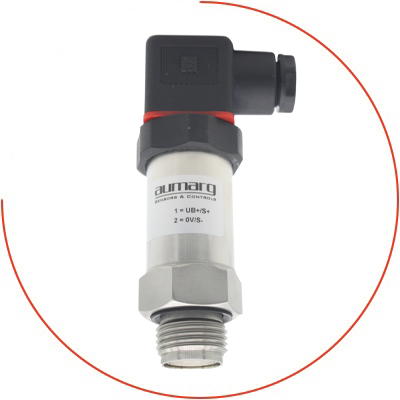

Series 8324 - Pressure Transmitter with Front Flush Diaphragm |
Diffused silicon piezoresistive sensor |
|
Measuring range:0 ... 0,16 bar to 0 ... 350 bar |
Accuracy:0,5%、0.25% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/2 with front flush diaphragm |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|

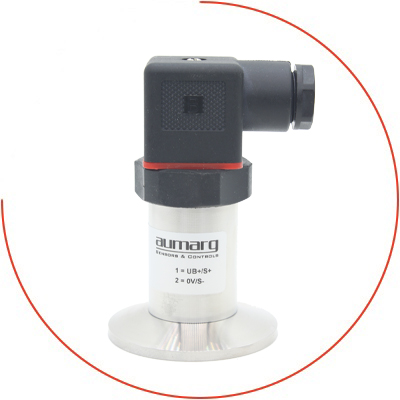

Series 8325 - Pressure Transmitter For Sanitary Applications |
Diffused silicon piezoresistive sensor |
|
Measuring range:0 ... 0,25 bar to 0 ... 25 bar |
Accuracy:0,5%、0.25% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:Tri-Clamp 1 1/2" |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|

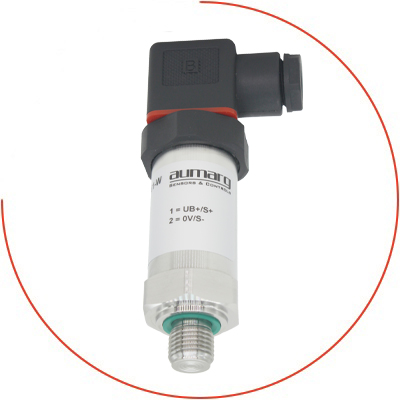

Series 8326 - Pressure Transmitter with Front Flush Diaphragm |
Diffused silicon piezoresistive sensor |
|
Measuring range:0 ... 40 bar to 0 ... 200 bar |
Accuracy:0,5% |
Output signal:4 ... 20 mA、0 ... 10 V |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/4 with front flush diaphragm |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|

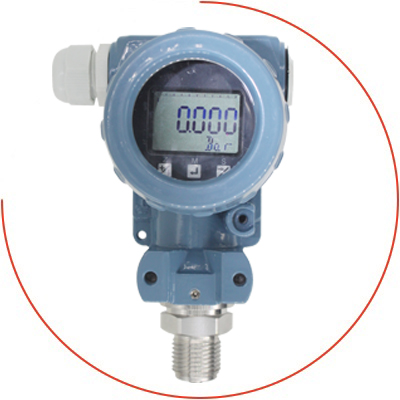

Series 8328 - Intelligent Pressure Transmitter |
Diffused silicon piezoresistive sensor |
|
Measuring range:0 ... 0,1 bar to 0 ... 1000 bar |
Accuracy:0,5%、0.25% |
Output signal:4 ... 20 mA、4 ... 20 mA+HART、RS485 |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/2 (others on request) |
Electrical connection:Cable gland |
|
|
|
|

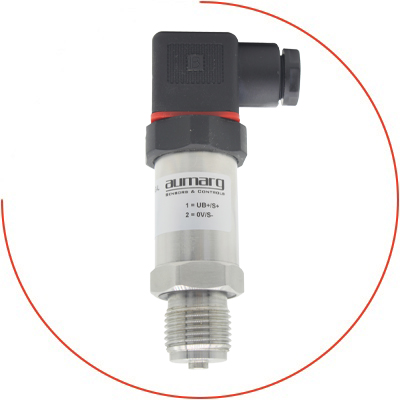

Series 8329 - Integrated Pressure / Temperature Transmitter |
Diffused silicon piezoresistive sensor + RTD |
|
Pressure measuring range:0 ... 1 bar to 0 ... 600 bar |
Temperature measuring range:-30 ... 125°C |
Accuracy:0,5%、0.25% |
Output signal:Pressure:4 ... 20 mA;Temperature:Pt100 or Pt1000 |
Wetted parts:Stainless Steel 316L + NBR(Option:FKM) |
Process connection:G1/2 (others on request) |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|

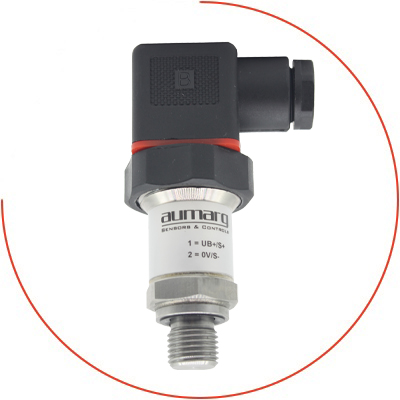

Series 8331 - High Overload Pressure Transmitter |
Thin film on steel sensor |
|
Measuring range:0 ... 25 bar to 0 ... 1200 bar |
Accuracy:0,5% |
Output signal:4 ... 20 mA、0 ... 10V (others on request) |
Wetted parts:17-4PH + HNBR |
Process connection:G1/4 (others on request) |
Electrical connection:DIN 175301-803 A、M12×1 (4-pin) or Cable outlet |
|
|
|
|
Series 8351 - Intelligent Pressure Transmitter |
Mono-silicon piezoresistive sensor |
|
Measuring range:0 ... 10 mbar to 0 ... 400 bar |
Accuracy:0,25%、0,1%、0,075% |
Output signal:4 ... 20 mA + HART |
Wetted parts:Stainless Steel 316L |
Process connection:G1/2 (others on request) |
Electrical connection:Cable gland |
|
|
|
|

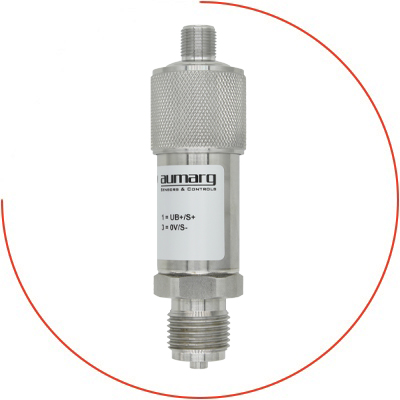

Series 8390 - Precision Pressure Transmitter |
Piezoresistive / Thin film on steel sensor |
|
Measuring range:0 ... 0,25 bar to 0 ... 1000 bar |
Accuracy:0,1%、0,05% |
Output signal:4 ... 20 mA、0 ... 10V (others on request) |
Wetted parts:Stainless Steel 316L |
Process connection:G1/2 (others on request) |
Electrical connection:M12×1 (4-pin)、DIN 175301-803 A or Cable outlet |
|
|
|
|
|
