Pressure Sensors Special for submersible measurement

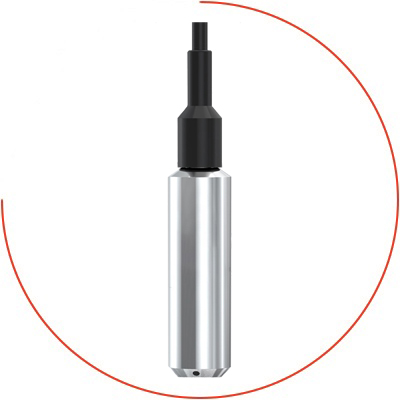

Series 8620 - Standard
Diffused silicon piezoresistive sensor

Diffused silicon piezoresistive sensor:0 ... 1 mH2O 至 0 ... 250 mH2O
Accuracy:0,5%、0.25%
Output signal:4 ... 20 mA、0 ... 10 V DC
Wetted parts:Stainless Steel 316L + NBR(Option:FKM)
Process connection:G1/2 with protection cap
Electrical connection:Cable outlet
Protection type:IP68


Series 8621 - Intelligent
Diffused silicon piezoresistive sensor

Diffused silicon piezoresistive sensor:0 ... 1 mH2O 至 0 ... 250 mH2O
Accuracy:0,5%、0.25%
Output signal:RS485 Modbus
Wetted parts:Stainless Steel 316L + NBR(Option:FKM)
Process connection:G1/2 with protection cap
Electrical connection:Cable outlet
Protection type:IP68

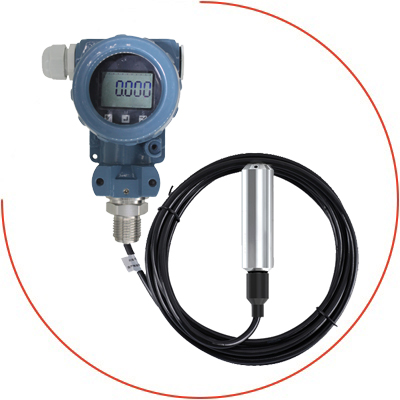

Series 8622 - Digital display
Diffused silicon piezoresistive sensor

Diffused silicon piezoresistive sensor:0 ... 1 mH2O 至 0 ... 250 mH2O
Accuracy:0,5%、0.25%
Output signal:4 ... 20 mA+HART
Wetted parts:Stainless Steel 316L + NBR(Option:FKM)
Process connection:G1/2 with protection cap
Electrical connection:Cable gland
Protection type:IP68


Series 8623 - Digital display intelligent
Diffused silicon piezoresistive sensor

Diffused silicon piezoresistive sensor:0 ... 1 mH2O 至 0 ... 250 mH2O
Accuracy:0,5%、0.25%
Output signal:RS485 Modbus
Wetted parts:Stainless Steel 316L + NBR(Option:FKM)
Process connection:G1/2 with protection cap
Electrical connection:Cable gland
Protection type:IP68
