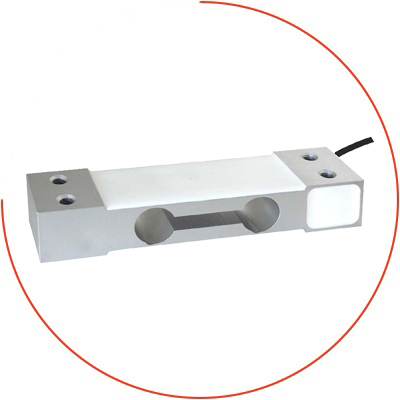

| Series 6101 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 3 kg to 0 ... 250 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：250 × 300 mm |
| Cable size：Φ3 × 450 mm |
|
| |
|
 |

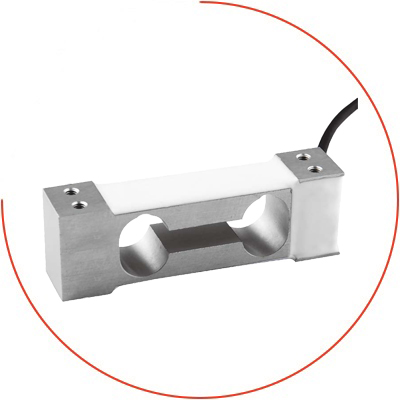

| Series 6102 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 0,3 kg to 0 ... 10 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：200 × 200 mm |
| Cable size：Φ3 × 450 mm |
|
| |
|
 |

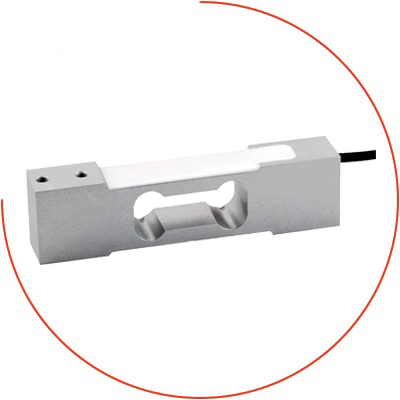

| Series 6103 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 5 kg to 0 ... 100 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：250 × 300 mm |
| Cable size：Φ5 × 1500 mm |
|
| |
|
 |

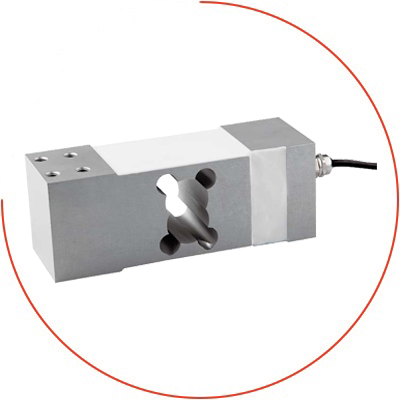

| Series 6104 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 50 kg to 0 ... 650 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：450 × 550 mm |
| Cable size：Φ5 × 2000 mm |
|
| |
|
 |

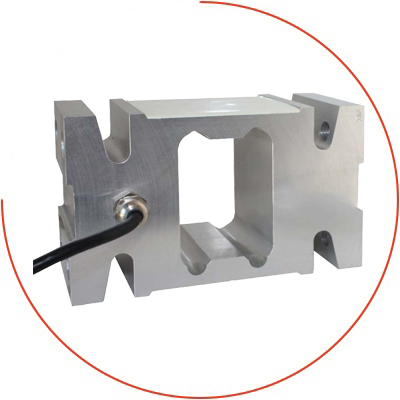

| Series 6105 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 100 kg to 0 ... 2000 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：≤ 600 kg：800 × 1000 mm；≥ 700 kg：1200 × 1200 mm |
| Cable size：Φ5 × 6000 mm |
|
| |
|
 |

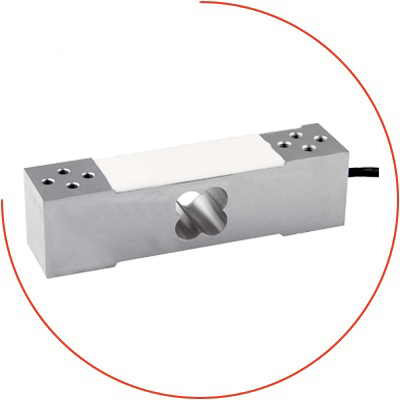

| Series 6106 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 20 kg to 0 ... 500 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：450 × 450 mm |
| Cable size：Φ5 × 1500 mm |
|
| |
|
 |

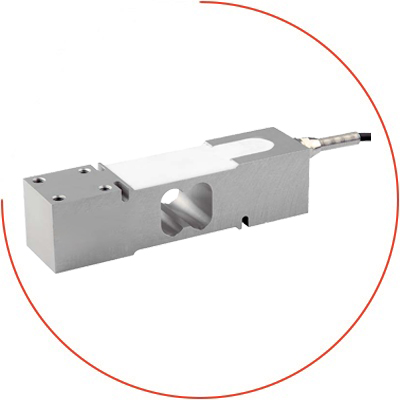

| Series 6107 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 50 kg to 0 ... 300 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：350 × 450 mm |
| Cable size：Φ5 × 1500 mm |
|
| |
|
 |

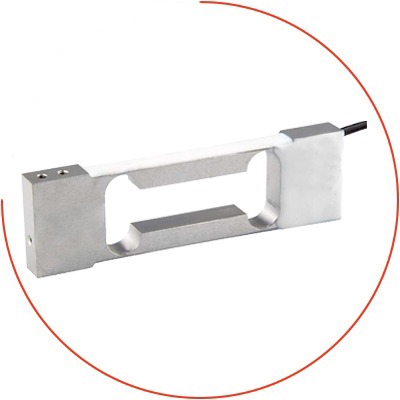

| Series 6108 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 0,3 kg to 0 ... 2 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：100 × 150 mm |
| Cable size：Φ3 × 450 mm |
|
| |
|
 |

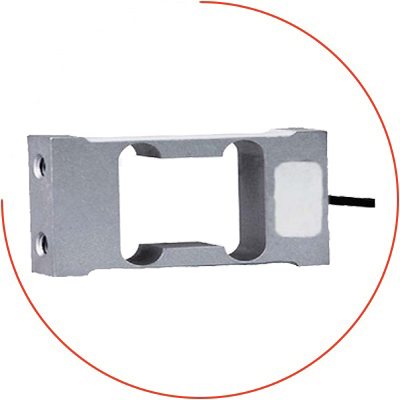

| Series 6109 - Single Point Load Cell |
| High accuracy、High side load tolerance |
| |
| Maximum capacity：0 ... 6 kg to 0 ... 20 kg |
| Non-linearity：≤ ± 0,02% F.S. |
| Rated output：2.0 ± 10% mV/V |
| Load cell material：aluminum alloy |
| Platform size：100 × 150 mm |
| Cable size：Φ3 × 450 mm |
|
| |
|
| |
|
