| Description |

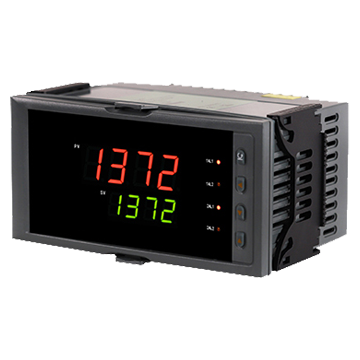

Series 9211 digital process controller is an ideal solution for dual display and synchronous signal transmission.
Series 9211 digital process controller has been developed specifically for the display of measured values from electronic transmitters, such as pressure transmitters and temperature transmitters. It offers various input configurations for mA DC, mV DC, V DC, TC, RTD etc. standard signals, which can be selected through the terminal configuration and input selection within the instrument configuration. And the power supply, input, output and communication are isolated.
All configuration and programming operations can be performed through the keys on the front panel. The menu structure design of the digital display instrument is reasonable, and the LED display has simple characters, which can provide all necessary programming instructions for the operator. In addition, if necessary, the user can activate the filter at different stages and set it. The filter can suppress short-time spikes, making the display easy to read.
All programmed parameters are stored in an EEPROM and are preserved in the event of power outage.
The digital process controller has a rugged plastic shell and panel mounting, which is very suitable for various industrial applications. |
| |
| Technical Specification |
| Type |
9211 |
| Name |
Digital Process Controller |
| Display principle |
7-segment LED, 4-digit |
| Indication range |
-1999 ... 9999 |
| Accuracy |
± 0.2 % of measuring span ± 1 digit |
| Channels |
2 |
| Input signal 1 |
mA DC, mV DC, V DC, TC, RTD etc. |
| Input signal 2 |
mA DC, mV DC, V DC, TC, RTD etc. |
| Output signal 1 |
4 ... 20 mA、0 ... 10 mA、0 ... 20 mA、0 ... 10 V、0 ... 5 V、1 ... 5V |
| Output signal 2 |
4 ... 20 mA、0 ... 10 mA、0 ... 20 mA、0 ... 10 V、0 ... 5 V、1 ... 5V |
| Communication（option) |
RS485 （Modbus TCP）， Baud 1200 ... 9600 bps |
| |
RS232 （Modbus TCP）， Baud 1200 ... 19200 bps |
| |
RS232 printer interface |
| Contact（option) |
without, 1 Relay, 2 Relays, 3 Relays, 4 Relays |
| Relay contact loading |
~220V AC，2A；~24V DC，2A |
| Feed output（option) |
1 or 2 channels output：24 ± 1 V DC，≤ 30 mA （RLoad ≥ 750Ω） |
| Power supply |
100 ... 240 V DC/AC, ≤ 5 W； 10 ... 36 V DC, ≤ 3 W |
| Housing |
ABS, front panel from polycarbonate |
| Protection degree |
Front panel IP54; clamps IP20 |
| Operating temperature |
-10 ... + 50°C |
| Storage temperature |
-10 ... + 50°C |
| Relative humidity |
< 85 % r.h. non-condensing |
| Applications |
Equipment manufacturing |
| |
Machine tool |
| |
Experimental platform |
| |
Level measurement |
| |
General industrial applications |
|
|
|
| |
Features |
| |
• 2-channel input, with LED display |
| |
• Universal input: mA DC, mV DC, V DC, TC, RTD etc. |
| |
• 4-way Isolation (Power / Input / Output / Communication) |
| |
• Choose Setpoints and/or Analog Output |
| |
• Optional RS485 communication interface (Modbus) output |
| |
• Universal Power Supply 100~240V AC/DC or 12~36 VDC |
|
| |
| |
| |
|
