| Description |

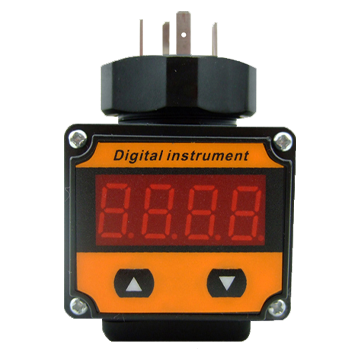

Series 9110 attachable indicators are the ideal solution for an on-site display with simultaneous signal transmission.
Due to its open programmability and easy installation, even for transmitters already in service, the attachable indicator can be easily and quickly added without difficulty. An additional power supply is not necessary.
The instrument is configured using two buttons which are located under the front cover. A logically-structured menu guides the operator through all the necessary programming steps using simple characters on the LED panel. It is possible to set the indication range and both offset and slope adjustment. In addition, if required, a filter can be activated and set in various stages. The filter suppresses short spikes and thus enables the easy readability of the display.
All programmed parameters are stored in an EEPROM and are preserved in the event of power outage.
With its robust and compact plastic case, the attachable indicator fulfills the ingress protection IP 65 and is thus exceptionally suitable for a wide range of industrial applications. |
| |
| Technical Specification |
| Type |
9110 |
| Name |
Attachable Indicator |
| Display principle |
7-segment LED, 4-digit |
| Indication range |
-1999 ... 9999 |
| Accuracy |
± 0.2 % of measuring span ± 1 digit |
| Unit |
Many different units can be chosen:None, Mpa, kPa, Pa, psi,bar, °C, M |
| Measuring rate |
1,8 ... 10 measurements/s |
| Electrical connection |
angular connector per DIN 175301-803 A |
| Power supply |
Not required, the indicator is powered by the 4 ... 20 mA loop |
| Voltage drop |
approx. 3 V DC |
| Permissible current carrying capacity |
Max. 60 mA |
| Housing |
ABS, front panel from polycarbonate |
| Protection degree |
IP65 |
| Operating temperature |
-20 ... + 50°C |
| Storage temperature |
-30 ... + 70°C |
| Relative humidity |
< 80 % r.h. non-condensing |
| Temperature effect on the indication |
0.1%/10K |
| Reverse polarity and short circuit protection |
Yes |
| Applications |
Equipment manufacturing |
| |
Machine tool |
| |
Experimental platform |
| |
Level measurement |
| |
General industrial applications |
|
|
|
| |
Features |
| |
• Indication range: -1999 ... 9999 |
| |
• Attachable to transmitter with 4 ... 20 mA output |
| |
• Scalable on site without external tools |
| |
• LED Display |
| |
• Compact design |
| |
• Protection type IP65 |
|
| |
| |
| |
|
