| Description |

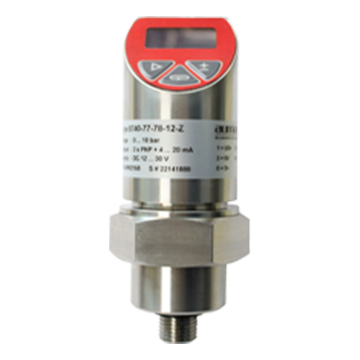

Series 8740 pressure switch adopts solid OLED display screen, which can display text very well. The display screen is slightly tilted, which is convenient for the operator to easily read the displayed pressure value from a long way off.
Series 8740 pressure switch adopts 3-key operation makes simple, intuitive menu navigation possible, with no need for additional assistance.
The installation of the series 8740 pressure switch can be flexibly adapted to the individual mounting situation. Due to the almost unlimited rotation of the display and case by more than 180°, the display can be adjusted independently of the electrical connection. The display can thus always be aligned to face the operator, and the M12×1 connection positioned to suit the desired cable routing. |
| |
| Technical Specification |
| Type |
8740 |
| Name |
Pressure Switch |
| Pressure range |
-1 ... 0 to 0 ... 1000 bar |
| Measuring principle |
piezoresistive |
| Units |
kPa、Mpa、Pa、bar、mbar、mmHg、Kgf/cm2 、mH2O、psi |
| Display |
5-digits-OLED-Display |
| Supply voltage |
10 ... 30 V DC |
| Analog output signal |
4 ... 20 mA, 2-wires or 0 .... 10 V, 3-wires |
| Switch output signal |
Transistor：PNP 、 NPN |
| Switch power rating |
Max. 500 mA |
| Accuracy |
≤ ± 0.5% F.S. 、≤ ± 0.25% F.S. |
| Stability (annual) |
≤ ± 0.3% F.S. |
| Compensated temperature range |
-10 ... 70°C |
| Temperature error zero point |
≤ ± 0.02% F.S./K |
| Temperature error range |
≤ ± 0.02% F.S./K |
| Operating temperature |
-30 ... +80°C |
| Storage temperature |
-40 ... +100°C |
| Response time |
≤ 10 ms |
| Housing |
Stainless Steel |
| Wetted parts |
Stainless Steel 316L,Sealing material |
| Process connection |
G1/4", 1/4NPT male thread (others on request) |
| Electrical connection |
M12×1，5-Pin |
| Reverse polarity and short circuit protection |
Yes |
| Protection degree |
IP65 |
| Applications |
Machine tools |
| |
Hydraulics and pneumatics |
| |
Pumps and compressors |
| |
Special-purpose machine building |
|
|
|
| |
Features |
| |
• Adjustment ranges from -1... 0 bar to 0 ... 1000 bar |
| |
• Switch output PNP, support switch action delay |
| |
• Configurable analogue output |
| |
• E-connection: M12×1, 5-Pin |
| |
• Max-memory |
| |
• Process connection G1/4 ", 1/4NPT and others |
|
| |
| |
| |
|
