| Description |

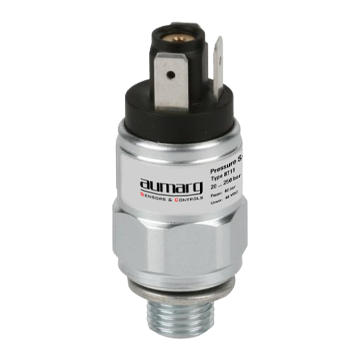

Series 8711 screw-in pressure switches in a piston design open or close a circuit, depending on whether the pressure is falling or rising. An adjustment screw enables easy and convenient on-site setting of the required switch point.
Optionally, aumarg offers its customers the factory setting of the switch point.
Series 8711 pressure switch is suitable for applications where compressed air, neutral and self-lubricating fluids as well as neutral gases are used.
This pressure switch features a good non-repeatability of the switch point of ≤ 2 % of the span. The compact design is suitable for easy mounting with a socket wrench. The switch is interesting for both OEM customers and customers with low volumes. |
| |
| Technical Specification |
| Type |
8711 |
| Name |
Pressure Switch |
| Adjustment range |
10 ... 30 to 30 ... 320 bar |
| Measurement element |
piston |
| Max. system pressure |
350 bar |
| Max. hysteresis |
15% |
| Switching function |
SPDT、 NO 、 NC |
| Switched voltage |
~ 48 V AC / ~ 24 V DC |
| Max. switched current resistive load |
2 A |
| Mechanical lifetime |
> 1×106 cycles |
| Switching frequenzy |
Max. 100 cycles / min |
| Material of housing |
zinc plated steel / stainless steel |
| Material of membrane |
NBR 、 NBR-LowTemp 、 EPDM 、 FVMQ 、 Viton |
| Electrical connection |
: Faston 6,3 × 0,8 |
| |
M12×1 (4-pin) |
| |
Cable outlet |
| Pressure fitting |
G1/8" male |
| |
G1/4" male |
| |
1/8NPT" male |
| |
1/4NPT" male |
| Temperature range of medium |
NBR：-20 ... +80°C |
| |
NBR-LowTemp：-40 ... + 80°C |
| |
EPDM：-40 ... +100°C |
| |
FVMQ：-40 ... +100°C |
| |
Viton: 0 ... + 100°C |
| Applications |
Hydraulics |
| |
Construction machinery |
| |
Machinery manufacturing |
|
|
|
| |
Features |
| |
• Adjustment range: 10 ... 30 bar to 30 ... 320 bar |
| |
• Snap action micro switch |
| |
• Piston with PTFE - sealing |
| |
• Change over contact SPDT, NC, NO |
| |
• E-connection: Faston 6,3 × 0,8、M12 x 1 or cable outlet |
| |
• Power rating: 48V / 2A |
|
| |
| |
| |
|
