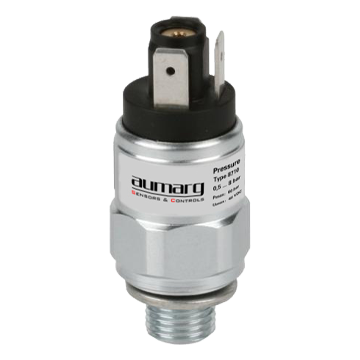

Series 8710 screw-in pressure switches in a diaphragm design open or close a circuit, depending on whether the pressure is falling or rising. An adjustment screw enables easy and convenient on-site setting of the required switch point.
Optionally, aumarg offers its customers the factory setting of the switch point.
Series 8710 pressure switch is suitable for applications where compressed air, neutral and self-lubricating fluids as well as neutral gases are used.
This pressure switch features a good non-repeatability of the switch point of ≤ 2 % of the span. The compact design is suitable for easy mounting with a socket wrench. The switch is interesting for both OEM customers and customers with low volumes. |
| |
| Technical Specification |
| Type |
8710 |
| Name |
Pressure Switch |
| Adjustment range |
0.2 ... 2 to 1 ... 16 bar |
| Measurement element |
Membrane |
| Max. system pressure |
60 bar |
| Max. hysteresis |
15% |
| Switching function |
SPDT、 NO 、 NC |
| Switched voltage |
~ 48 V AC / ~ 24 V DC |
| Max. switched current resistive load |
2 A |
| Mechanical lifetime |
> 1×106 cycles |
| Switching frequenzy |
Max. 100 cycles / min |
| Material of housing |
zinc plated steel / stainless steel |
| Material of membrane |
NBR 、 NBR-LowTemp 、 EPDM 、 FVMQ 、 Viton |
| Electrical connection |
: Faston 6,3 × 0,8 |
| |
M12×1 (4-pin) |
| |
Cable outlet |
| Pressure fitting |
G1/8" male |
| |
G1/4" male |
| |
1/8NPT" male |
| |
1/4NPT" male |
| Temperature range of medium |
NBR：-20 ... +80°C |
| |
NBR-LowTemp：-40 ... + 80°C |
| |
EPDM：-40 ... +100°C |
| |
FVMQ：-40 ... +100°C |
| |
Viton: 0 ... + 100°C |
| Applications |
Pneumatic |
| |
Automatic production line |
| |
Mechanical equipment |
|
|
|
| |
Features |
| |
• Adjustment range: 0,2 ... 16 bar |
| |
• Snap action micro switch |
| |
• Elastomer membrane |
| |
• Change over contact SPDT, NC, NO |
| |
• E-connection: Faston 6,3 × 0,8、M12 x 1 or cable outlet |
| |
• Power rating: 48V / 2A |
|
| |
| |
| |
|
