| Description |

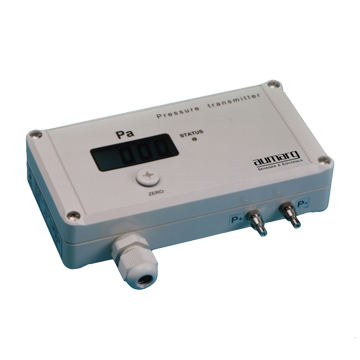

Series 8569 differential pressure transmitter is suitable for measuring the gas medium in ventilation duct and air conditioning system.
Its working principle is based on piezoresistive measurement. This compact differential pressure transmitter has excellent product performance and reliable product quality.
The differential pressure transmitter has LCD display and can provide two output signal (4... 20 mA or 0... 10 V) versions. |
| |
| 技术参数 |
| Type |
8569 |
| Name |
Differential Pressure Transmitter |
| Measuring range |
0 ... 0,5 mabr to 0 ... 10 bar |
| Max. overpressure |
≤ 2.5 mbar：250 mbar |
| |
≤ 100 mbar：350 mbar |
| |
1000 mbar：3000 mbar |
| |
10 bar：12 bar |
| Measuring principle |
piezoresistive |
| Display |
LCD |
| Accuracy @ 25°C |
≤ ± 1.0% |
| Output signal |
4 ... 20 mA |
| |
0 ... 10 V |
| Housing |
Plastic (ABS) |
| Wetted parts |
Stainless steel |
| Electrical connection |
PG7-screw coupling and internal screw terminals |
| Process connection |
2 connections for tube with 4 mm or 6mm diameter inside |
| Compensated temperature range |
0 ... +50°C |
| Operating temperature |
-20 ... +50°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Air flow control |
| |
Measure differential pressure and static pressure |
| |
Dust free room and laboratory overvoltage monitoring |
| |
Ventilation system |
| |
Filtration system |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 0,5 mbar to 0 ... 10 bar |
| |
• Output signal: 4 ... 20 mA or 0 ... 10 V |
| |
• With LCD-display |
| |
• High reliability |
| |
• Plastic case |
| |
• Suitable for air and all non aggressive gases |
|
| |
| |
| |
|
