| Description |

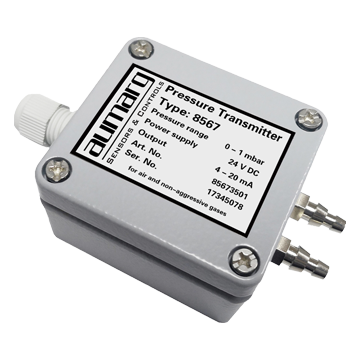

Series 8567 differential pressure transmitter is suitable for measuring the gas medium in ventilation duct and air conditioning system.
Its working principle is based on piezoresistive measurement. This compact differential pressure transmitter has excellent product performance and reliable product quality.
The differential pressure transmitter can provide two output signal versions (4... 20 mA or 0... 10 V). |
| |
| 技术参数 |
| Type |
8567 |
| Name |
Differential Pressure Transmitter |
| Measuring range |
0 ... 0,25 to 0 ... 5 mbar |
| Max. overpressure |
250 mbar |
| Measuring principle |
piezoresistive |
| Accuracy @ 25°C |
≤ ± 1.0% |
| Output signal |
4 ... 20 mA |
| |
0 ... 10 V |
| Housing |
Aluminium |
| Wetted parts |
Stainless steel |
| Electrical connection |
PG7-screw coupling and internal screw terminals |
| Process connection |
2 connections for tube with 4 mm or 6mm diameter inside |
| Compensated temperature range |
0 ... +50°C |
| Operating temperature |
-20 ... +50°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Air flow control |
| |
Measure differential pressure and static pressure |
| |
Dust free room and laboratory overvoltage monitoring |
| |
Ventilation system |
| |
Filtration system |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 0,25 mbar to 0 ... 5 mbar |
| |
• Output signal: 4 ... 20 mA or 0 ... 10 V |
| |
• Compact design |
| |
• High reliability |
| |
• Sturdy aluminium case |
| |
• Suitable for air and all non aggressive gases |
|
| |
| |
| |
|
