Series 8484 - Resistance Thermometer with Digital Display
Flanged、Intelligent


Description

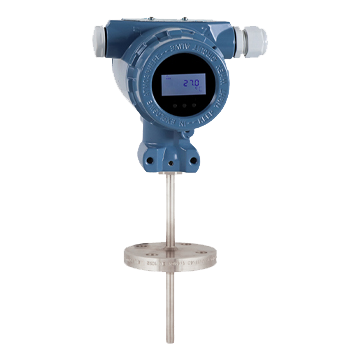

Series 8484 resistance thermometer with digital display is suitable for containers and pipes. DIN EN 1092-1 standard flange is available.

This series of resistance thermometer with digital display is suitable for liquid and gaseous media under medium mechanical load. The thermowell adopts the form of integral drilling and is connected with the junction box through thread. Thermowells made of stainless steel shall be used under normal chemical conditions.

The replaceable measuring element does not need to take out the thermometer completely during the replacement process. Therefore, inspection and replacement can be carried out during equipment operation or when replacement maintenance is required during operation. Selecting the standard probe rod length can shorten the delivery time and reduce the inventory of spare parts.

The insertion depth, flange size, design of thermowell, junction box and sensor can be selected to meet different application needs.

This series of resistance thermometer with digital display is equipped with LCD display.

Technical Specification
Type 8484
Name Resistance Thermometer with Digital Display
Measuring range -50 ... +600°C
Measuring element Pt100
Measuring element tolerance value per IEC 60751 Class B、Class A
Transmission accuracy @ 20°C ≤ 0.02% F.S.
Response time t50 < 25 S、t90 < 66S (for sensor diameter 11 mm)
Sensor diameter 9mm、11mm
Sensor insertion length 100mm、150mm、200mm、250mm、300mm、400mm(Max. 500mm)
Process connection Flange acc. to EN 1092-1
Measuring insert Replaceable
Extension tube 145mm
Material of process connection Stainless Steel 316
Material of sensor tube Stainless Steel 316
Supply voltage 12 ... 32 V DC
Output signal 4 ... 20 mA、 4 ... 20 mA + HART、4 ... 20 mA + RS485
Permitted load ≤ (Ub-12 V)/0.02A
Storage temperature -40 ... +85°C
Ambient temperature -20 ... +70°C
Housing Aluminum die-casting
Electrical connection Cable gland
Protection degree IP65
Applications Machinery Industry
  Equipment and Tank Manufacturing
  Energy and Power Plant Technology
  Chemical Industry
  Food and Beverage Industry
  Health Industry
  Heating and Air Conditioning Technology

  Features
  Measuring ranges from -50°C to 600°C
  Output signal: 4 ... 20 mA、HART、RS485
  With extension tube
  With LCD - display
  Process connection and sensor tube from 316
  Flange connection
