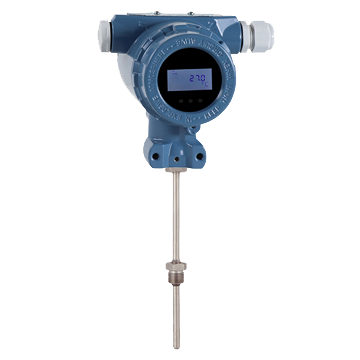

Series 8482 - Resistance Thermometer with Digital Display
Threaded、With extension tube、Intelligent


Description
Series 8482 resistance thermometer with digital display can be combined with a variety of thermowells. Use without thermowell is recommended only for specific applications

This series of resistance thermometer with digital display have extension tubes and can replace measuring elements. The process connection, connection method and sensor insertion length can be used with thermowells, which are suitable for the size and application of various thermowell.

This series of resistance thermometer with digital is equipped with LCD display.

Technical Specification
Type 8482
Name Resistance Thermometer with Digital Display
Measuring range -50 ... +400°C
Measuring element Pt100
Measuring element tolerance value per IEC 60751 Class B、Class A
Transmission accuracy @ 20°C ≤ 0.02% F.S.
Response time t50 < 25 S、t90 < 75 S (for sensor diameter 6 mm)
Sensor diameter 9mm、11mm
Sensor insertion length 50mm、100mm、150mm、200mm(Max. 500mm)
Fitting thread G1/2"、1/2"NPT
Tightening torque, recommended 20 Nm
Measuring insert Replaceable
Extension tube 145mm
Material of process connection Stainless Steel 316
Material of sensor tube Stainless Steel 316
Supply voltage 12 ... 32 V DC
Output signal 4 ... 20 mA、 4 ... 20 mA + HART、4 ... 20 mA + RS485
Permitted load ≤ (Ub-12 V)/0.02A
Storage temperature -40 ... +85°C
Ambient temperature -20 ... +70°C
Housing Aluminum die-casting
Electrical connection Cable gland
Protection degree IP65
Applications Machinery Industry
  Equipment and Tank Manufacturing
  Energy and Power Plant Technology
  Chemical Industry
  Food and Beverage Industry
  Health Industry
  Heating and Air Conditioning Technology

  Features
  Measuring ranges from -50°C to 400°C
  Output signal: 4 ... 20 mA、HART、RS485
  With extension tube
  With LCD - display
  Process connection and sensor tube from 316
  Process connection G1/2 ", 1/2NPT and others
