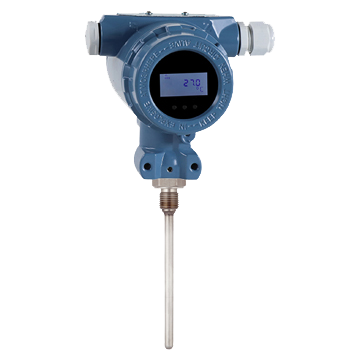

Series 8481 - Resistance Thermometer with Digital Display
Threaded、Intelligent


Description
Series 8421 resistance thermometer with digital display can be combined with a variety of thermowells. Use without thermowell is recommended only for specific applications.

This series of resistance thermometers with digital display can replace measuring elements.The process connection, connection method and sensor insertion length can be used with thermowells, which are suitable for the size and application of various thermowell.

This series of resistance thermometer with digital is equipped with LCD display.

Technical Specification
Type 8481
Name Resistance Thermometer with Digital Display
Measuring range -50 ... +200°C
Measuring element Pt100
Measuring element tolerance value per IEC 60751 Class B、Class A
Transmission accuracy @ 20°C ≤ 0.02% F.S.
Response time t50 < 2 S、t90 < 10 S (for sensor diameter 6 mm)
Sensor diameter 6mm、8mm
Sensor insertion length 50mm、100mm、150mm、200mm（Max. 500mm）
Fitting thread G1/2"、1/2"NPT
Tightening torque, recommended 20 Nm
Measuring insert Replaceable
Material of process connection Stainless Steel 316
Material of sensor tube Stainless Steel 316
Supply voltage 12 ... 32 V DC
Output signal 4 ... 20 mA、 4 ... 20 mA + HART、4 ... 20 mA + RS485
Permitted load ≤ (Ub-12 V)/0.02A
Storage temperature -40 ... +85°C
Ambient temperature -20 ... +70°C
Housing Aluminum die-casting
Electrical connection Cable gland
Protection degree IP65
Applications Machinery Industry
  Equipment and Tank Manufacturing
  Energy and Power Plant Technology
  Chemical Industry
  Food and Beverage Industry
  Health Industry
  Heating and Air Conditioning Technology

  Features
  • Measuring ranges from -50°C to 200°C
  • Output signal: 4 ... 20 mA、HART、RS485
  • Compact dimensions
  • With LCD - display
  • Process connection and sensor tube from 316
  • Process connection G1/2 ", 1/2NPT and others
