Series 8431 - Resistance Thermometer with Transmitter
Compact design


Description

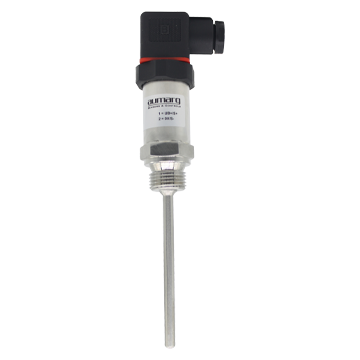

Series 8431 integrated temperature transmitter is used to measure gas and liquid media.

This series of resistance thermometers are equipped with integrally welded thermowell and threaded process connection that can be directly installed. The form without process connection can also be realized. Standard DIN L-plug, M12×1 or cable outlet can be used for electrical connection.

The integrated temperature transmitter integrates an output signal 4 20 mA transmitter. It ensures the simple and reliable transmission of the measured temperature signal value.

Technical Specification
Type 8431
Name Integrated Temperature Transmitter
Measuring range -50 ... +200°C
Measuring element Pt100
Measuring element tolerance value per IEC 60751 Class B、Class A
Accuracy @ 100°C 0.5%
Response time t50 < 5 S、t90 < 10 S(for sensor diameter 6 mm)
Sensor diameter 6mm、8mm
Sensor insertion length 50mm、100mm、120mm、150mm(Max. 500mm)
Fitting thread G1/2"、1/2"NPT
Tightening torque, recommended 20 Nm
Housing Stainless Steel 316L
Material of process connection Stainless Steel 316L
Material of sensor tube Stainless Steel 316L
Effect of load ± 0.05% / Ω
Temperature units Configurable °C、°F、K
Output signal 4 ... 20 mA
Supply voltage 8 ... 36 V DC
Configuration and calibration data Permanently stored in EEPROM
Switch-on delay, electrical <10 ms
Measuring current 0.1 ... 1.0 mA
Storage temperature -30 ... +85°C
Ambient temperature -30 ... +85°C
Vibration resistance acc. to IEC 60751 ≤ 3 g
Electrical connection L-Plug、M12×1、Cable outlet
Reverse polarity and short circuit protection Yes
Protection degree IP65
Applications Machinery Industry
  Equipment and Tank Manufacturing
  Hydraulic system
  General application
  Heating and Air Conditioning Technology

  Features
  Measuring ranges from -50°C to 200°C
  With transmitter, output 4 ... 20 mA
  Compact dimensions
  E-connection: L-Plug, M12×1 or cable outlet
  Process connection and sensor tube from 316L
  Process connection G1/2 ", 1/2NPT and others
