| Description |

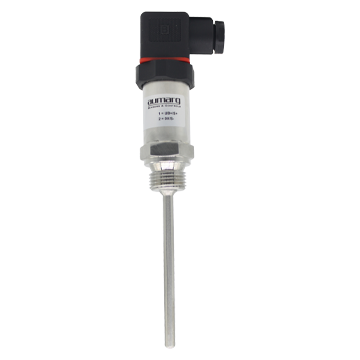

Series 8430 resistance thermometer is used to measure gas and liquid media.
This series of resistance thermometers are equipped with integrally welded thermowell and threaded process connection that can be directly installed. The form without process connection can also be realized. Standard DIN L-plug or M12×1 can be used for electrical connection.
The resistance thermometer provides PT100 signal direct output. |
| |
| Technical Specification |
| Type |
8430 |
| Name |
Resistance Thermometer |
| Measuring range |
-50 ... +200°C |
| Measuring element |
Pt100 |
| Measuring element tolerance value per IEC 60751 |
Class B、Class A |
| Accuracy @ 100°C |
~ 1 Kelvin |
| Response time |
t50 < 5 S、t90 < 10 S（for sensor diameter 6 mm） |
| Sensor diameter |
6mm、8mm |
| Sensor insertion length |
50mm、100mm、120mm、150mm（Max. 500mm） |
| Fitting thread |
G1/2"、1/2"NPT |
| Tightening torque, recommended |
20 Nm |
| Housing |
Stainless Steel 316L |
| Material of process connection |
Stainless Steel 316L |
| Material of sensor tube |
Stainless Steel 316L |
| Output signal |
Pt100 |
| Connection method |
2-wire、3-wire、4-wire |
| Measuring current |
0.1 ... 1.0 mA |
| Storage temperature |
-40 ... +125°C |
| Ambient temperature |
-40 ... +125°C |
| Electrical connection |
L-Plug、M12×1 |
| Protection degree |
IP65 |
| Applications |
Machinery Industry |
| |
Equipment and Tank Manufacturing |
| |
Hydraulic system |
| |
General application |
| |
Heating and Air Conditioning Technology |
|
|
|
| |
Features |
| |
• Measuring ranges from -50°C to 200°C |
| |
• Output signal: Pt100 in 2-, 3-, 4-wire circuit |
| |
• Compact dimensions |
| |
• E-connection: L-Plug, M12×1 |
| |
• Process connection and sensor tube from 316L |
| |
• Process connection G1/2 ", 1/2NPT and others |
|
| |
| |
| |
|
