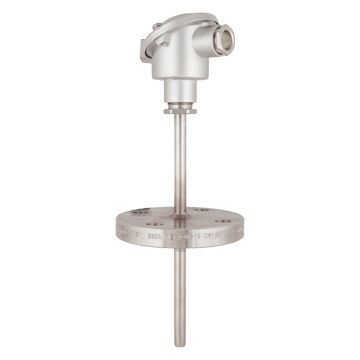

Series 8424 resistance thermometer is suitable for containers and pipes. DIN EN 1092-1 standard flange is available.
This series of resistance thermometer is suitable for liquid and gaseous media under medium mechanical load. The thermowell adopts the form of integral drilling and is connected with the junction box through thread. Thermowells made of stainless steel shall be used under normal chemical conditions.
The replaceable measuring element does not need to take out the thermometer completely during the replacement process. Therefore, inspection and replacement can be carried out during equipment operation or when replacement maintenance is required during operation. Selecting the standard probe rod length can shorten the delivery time and reduce the inventory of spare parts.
The insertion depth, flange size, design of thermowell, junction box and sensor can be selected to meet different application needs.
The resistance thermometer can be equipped with its own temperature transmitter. |
| |
| Technical Specification |
| Type |
8424 |
| Name |
Resistance Thermometer |
| Measuring range |
-50 ... +600°C |
| Measuring element |
Pt100 |
| Measuring element tolerance value per IEC 60751 |
Class B、Class A |
| Accuracy @ 100°C |
~ 1 Kelvin |
| Response time |
t50 < 25 S、t90 < 66 S（for sensor diameter 11 mm） |
| Sensor diameter |
9mm、11mm |
| Sensor insertion length |
100mm、150mm、200mm、250mm、300mm、400mm（Max. 500mm） |
| Process connection |
Flange acc. to EN 1092-1 |
| Measuring insert |
Replaceable |
| Extension tube |
145mm |
| Material of process connection |
Stainless Steel 316 |
| Material of sensor tube |
Stainless Steel 316 |
| Output signal |
Pt100 |
| Connection method |
2-wire、3-wire、4-wire |
| Measuring current |
0.1 ... 1.0 mA |
| Storage temperature |
-40 ... +125°C |
| Ambient temperature |
-40 ... +125°C |
| Electrical connection |
Type B to DIN 43729 |
| Protection degree |
IP65 |
| Applications |
Machinery Industry |
| |
Equipment and Tank Manufacturing |
| |
Energy and Power Plant Technology |
| |
Chemical Industry |
| |
Food and Beverage Industry |
| |
Health Industry |
| |
Heating and Air Conditioning Technology |
|
|
|
| |
Features |
| |
• Measuring ranges from -50°C to 600°C |
| |
• Output signal: Pt100 in 2-, 3-, 4-wire circuit |
| |
• Exchangeable process probe |
| |
• With extension tube |
| |
• Process connection and sensor tube from 316 |
| |
• Flange connection |
|
| |
| |
| |
|
