| Description |

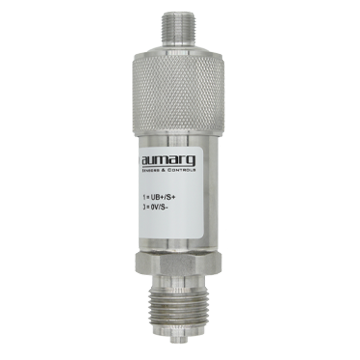

Series 8390 pressure transmitters are designed for high-precision measurement applications, and the maximum measurement deviation is only 0.05% of the range. In addition, the pressure transmitter of this model also has active temperature compensation function, which will not produce additional error when applied at the temperature of 10 to 60 °C.
With a fast measurement rate of up to 1 kHz, the operator can quickly obtain the measured values.
For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections. |
| |
| Technical Specification |
| Type |
8390 |
| Name |
Pressure Transmitter |
| Pressure range |
0 ... 0,25 to 0 ... 1000 bar |
| Measuring principle |
Piezoresistive / Thin film on steel |
| Accuracy @ 25°C |
≤ ± 0.1% or ≤ ± 0.05% |
| Output signal |
4 ... 20 mA |
| |
0 ... 10 V |
| Housing |
stainless steel |
| Wetted parts |
stainless steel 316Ti |
| Electrical connection |
M12×1 (4-pin) |
| |
DIN 175301-803 A |
| |
Cable outlet |
| Process connection |
G1/2" male |
| |
G1/4" male |
| |
1/2NPT" male |
| Compensated temperature range |
-20 ... +80°C |
| Operating temperature |
-20 ... +105°C |
| Ambient temperature |
-20 ... + 80°C |
| Applications |
Measuring equipment |
| |
Experimental platform |
| |
Calibration technique |
| |
Laboratory |
| |
Machinery manufacturing |
| |
Equipment manufacturing |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 0,25 bar to 0 ... 1000 bar |
| |
• Output signal: 4 ... 20 mA or 0 ... 10 V |
| |
• Accuracy：0.1% or 0.05% |
| |
• Fast measurement rates up to 1 kHz |
| |
• Optimum long-term stability |
| |
• Process connection G1/2 ", G1/4 " and others |
|
| |
| |
| |
|
