| Description |

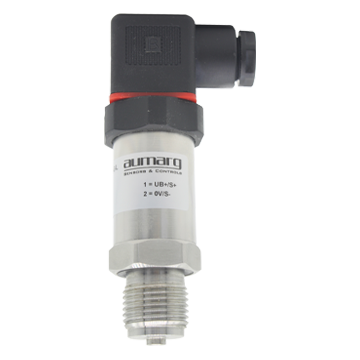

Series 8329 pressure transmitter has a stainless steel housing with a diffused silicon core and a sensor with thermal resistance. Series 8329 pressure transmitteris is an integrated pressure and temperature transmitter for general industrial applications.
In general industrial applications, the advantages of this pressure transmitter are robustness and long-term stability during operation, and the temperature can be measured at the same time.
For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections. |
| |
| Technical Specification |
| Type |
8329 |
| Name |
Integrated Pressure / Temperature Transmitter |
| Pressure range |
0 ... 1 tp 0 ... 600 bar |
| Temperature range |
-30 ... +125°C |
| Measuring principle |
Diffused silicon piezoresistive and RTD |
| Accuracy @ 25°C |
≤ ± 0.5% or ≤ ± 0.25% |
| Output signal |
Pressure：4 ... 20 mA；Temperature：Pt100 or Pt1000 |
| |
Pressure：0 ... 10 V；Temperature：Pt100 or Pt1000 |
| Housing |
stainless steel 316L |
| Wetted parts |
stainless steel 316L |
| Sealing material |
NBR or FKM |
| Electrical connection |
DIN 175301-803 A |
| |
M12×1 (4-pin) |
| |
Cable outlet |
| Process connection |
G1/4" male |
| |
G1/2" male |
| Compensated temperature range |
0 ... +70°C |
| Operating temperature |
-30 ... +125°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Machinery manufacturing |
| |
Engine manufacturing |
| |
Hydraulic pressure |
| |
Pneumatic |
| |
HVAC |
| |
Level measurement |
| |
Water treatment |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 1 bar to 0 ... 600 bar |
| |
• Pressure output signal：4 ... 20 mA or 0 ... 10 V |
| |
• Temperature output signal：Pt100 or Pt1000 |
| |
• E-connection: L-Plug, M12×1 or cable outlet |
| |
• Optimum long-term stability |
| |
• Process connection G1/4 ", G1/2 " and others |
|
| |
| |
| |
|
