| Description |

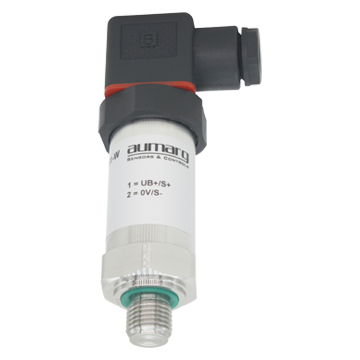

The 8326 series pressure transmitter has a stainless steel housing and a sensor with a diffused silicon core.Series 8326 is a pressure transmitter suitable for pasty or crystallizing media applications..
In the application of measuring pasty or crystallizing media, Series 8326 pressure transmitter with front flush diaphragm are robustness and long-term stability during operation.
For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections. |
| |
| Technical Specification |
| Type |
8326 |
| Name |
Pressure Transmitter |
| Pressure range |
0 ... 40 to 0 ... 200 bar |
| Measuring principle |
Diffused silicon piezoresistive |
| Accuracy @ 25°C |
≤ ± 0.5% |
| Output signal |
4 ... 20 mA |
| |
0 ... 10 V |
| Housing |
stainless steel 316L |
| Wetted parts |
stainless steel 316L |
| Sealing material |
NBR or FKM |
| Electrical connection |
DIN 175301-803 A |
| |
M12×1 (4-pin) |
| |
Cable outlet |
| Process connection |
G1/4" male - with Front Flush Diaphragm |
| Compensated temperature range |
0 ... +70°C |
| Operating temperature |
-30 ... +80°C |
| |
-30 ... + 100°C |
| Ambient temperature |
-25 ... + 85°C |
| Applications |
Process technology |
| |
Plant construction |
| |
Apparatus construction |
| |
Development applications |
| |
Hydraulic pressure |
| |
Spraying industry |
| |
Gluing equipment |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 40 bar to 0 ... 200 bar |
| |
• Output signal: 4 ... 20 mA or 0 ... 10 V |
| |
• For pasty or crystallizing media |
| |
• E-connection: L-Plug, M12×1 or cable outlet |
| |
• Optimum long-term stability |
| |
• G1/4"with front flush diaphragm |
|
| |
| |
| |
|
