Series 8325 - Pressure Transmitter For Sanitary Applications
Diffused silicon piezoresistive sensor


Description

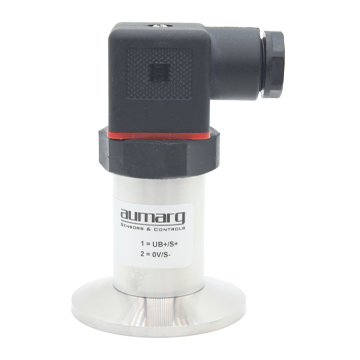

The 8325 series pressure transmitter has a stainless steel housing and a sensor with a diffused silicon core. series 8325 is a pressure transmitter suitable for sanitary applications.

All parts in contact with liquid are made of stainless steel and fully welded. Series 8325 pressure transmitter with front flush diaphragm areare robustness and long-term stability during operation.

For different industrial requirements, the transmitter can provide all process, mechanical and electrical connections.

Technical Specification
Type 8325
Name Pressure Transmitter
Pressure range 0 ... 0,25 to 0 ... 25 bar
Measuring principle Diffused silicon piezoresistive
Accuracy @ 25°C ≤ ± 0.5% or ≤ ± 0.25%
Output signal 4 ... 20 mA
  0 ... 10 V
Housing stainless steel 316L
Wetted parts stainless steel 316L
Sealing material NBR or FKM
Electrical connection DIN 175301-803 A
  M12×1 (4-pin)
  Cable outlet
Process connection Tri-Clpam 11/2"
Compensated temperature range 0 ... +70°C
Operating temperature -30 ... +125°C
Ambient temperature -25 ... + 85°C
Applications Dairies
  Breweries
  Food industry
  Pharmaceutical industry
  Sterilizers

  Features
  Measuring ranges from 0 ... 0,25 bar to 0 ... 25 bar
  Output signal: 4 ... 20 mA or 0 ... 10 V
  Aseptic pressure connection
  E-connection: L-Plug, M12×1 or cable outlet
  High overload protection
  Optimum long-term stability
