| Description |

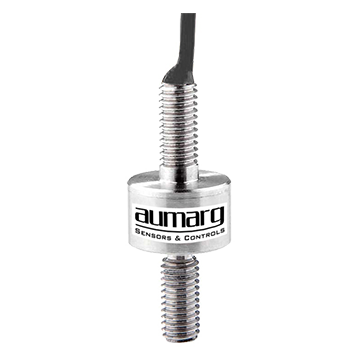

Series 6371 tension / compression force transducers are designed for static and dynamic measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications.
Force transducers of this series are used in weighing technology as well as in countless industrial applications, where high accuracy, simple installation with force introduction via the two external threads and a favorable price plays a decisive role.
The force to be measured must be applied concentrically and free of transverse force. The force transducers are to be mounted on a level surface. |
| |
| Technical Specification |
| Type |
6371 |
| Name |
External Thread Load Cell（Tension and compression Force sensor） |
| Measuring ranges |
0 ... 10 to 0 ... 500 kg |
| Measuring principle |
Strain gauge |
| Temperature effect on minimum dead load output |
≤ ± 0.05% F.S. / 10°C |
| Temperature effect on sensitivity |
≤ ± 0.05% F.S. / 10°C |
| Non-linearity |
≤ ± 1.0% F.S. |
| Hysteresis |
≤ ± 0.5% F.S. |
| Repeatabability |
≤ ± 0.5% F.S. |
| Creep error (30 minutes) |
≤ ± 0.1% F.S. |
| Rated output |
1.0 ± 20 % mV/V |
| Zero balance |
≤ ± 5% F.S. |
| Excitation voltage |
5 ... 15 V DC |
| Input resistance |
350 ± 30 Ω |
| Output resistance |
350 ± 5 Ω |
| Insulation resistance (100 V DC) |
≥ 5000 MΩ |
| Safe load limit |
120% F.S. |
| Ultimate load |
200% F.S. |
| Compensated temperature range |
-10 ... +60°C |
| Operating temperature range |
-20 ... + 80°C |
| Load cell material |
stainless steel |
| Cable size |
≤ 50 kg：Φ2 × 1500 mm |
| |
≥ 100 kg：Φ3 × 1500 mm |
| Protection degree |
IP 66 |
| Applications |
Tension and compression force test |
| |
Tank weighing |
| |
Load monitoring of industrial equipment |
| |
Riveting machine |
| |
Welding machine |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 10 kg to 0 ... 500 kg |
| |
• Stainless steel construction |
| |
• Tension and compression application |
| |
• Simple installation |
| |
• Low profile |
| |
• Protection class IP66 |
|
| |
| |
| |
|
