| Description |

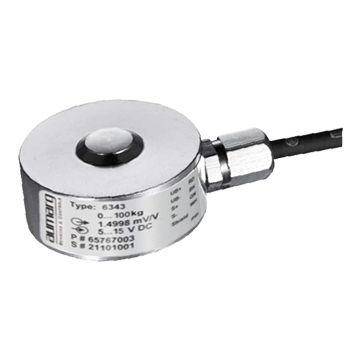

Series 6343 compression load cell is up to 1000 Kg, which is suitable for static and dynamic compression force measurement. With its low total height and small outer diameter, the compression load cell can be quickly installed on equipment or test instruments, so it can be widely used in industrial fields.
The compression load cell is an ideal choice for the area with limited space and the need of compression force measurement. The application fields of the product also include test platforms for different purposes, monitoring and control of manufacturing processes, testing fields and laboratories.
In order to prevent compression overload, during product installation, the user needs to power on the compression load cell and monitor its measured value. The measured force must be coaxial axial force and cannot bear lateral force. The compression load cell must be installed on a horizontal surface. |
| |
| Technical Specification |
| Type |
6343 |
| Name |
Compression Load Cell |
| Measuring ranges |
0 ... 5 Kg to 0 ... 1 t |
| Measuring principle |
Strain gauge |
| Temperature effect on minimum dead load output |
≤ ± 0.05% F.S. / 10°C |
| Temperature effect on sensitivity |
≤ ± 0.05% F.S. / 10°C |
| Non-linearity |
≤ ± 0.5% F.S. |
| Hysteresis |
≤ ± 0.25% F.S. |
| Repeatabability |
≤ ± 0.25% F.S. |
| Creep error (30 minutes) |
≤ ± 0.1% F.S. |
| Rated output |
1.5 ± 10% mV/V |
| Zero balance |
≤ ± 2% F.S. |
| Excitation voltage |
5 ... 15 V DC |
| Input resistance |
350 ± 10 Ω |
| Output resistance |
350 ± 5 Ω |
| Insulation resistance (100 V DC) |
≥ 5000 MΩ |
| Safe load limit |
120% F.S. |
| Ultimate load |
200% F.S. |
| Compensated temperature range |
-10 ... +60°C |
| Operating temperature range |
-20 ... +80°C |
| Load cell material |
stainless steel |
| Cable size |
Φ3 × 1500 mm |
| Protection degree |
IP 65 |
| Applications |
Automatic production equipment |
| |
Measurement and control system |
| |
Automation industry |
| |
Material testing machine |
| |
Mold making |
|
|
|
| |
Features |
| |
• Measuring ranges from 0 ... 5 kg to 0 ... 1 t |
| |
• Stainless steel construction |
| |
• Robust design |
| |
• Simple installation |
| |
• Very low installation height |
| |
• Protection class IP65 |
|
| |
| |
| |
|
