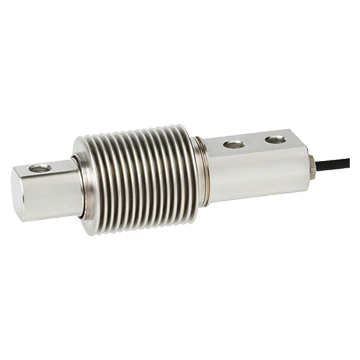

Series 6231 bending beam load cells are suitable for static and dynamic measuring requirements. They serve for determining shear forces in diverse fields of application.
Series 6231 bending beam load cells are made of stainless steel, whose properties are particularly suitable for the fields of application in scales, laboratory technology and stage construction.
The measuring force must be introduced through the centre and free of transverse force. When assembling the shear beam, care should be taken that the support surface is flat. |
| |
| Technical Specification |
| Type |
6231 |
| Name |
Bending Beam Load Cell |
| Measuring ranges |
0 ... 20 to 0 ... 1500 kg |
| Measuring principle |
Strain gauge |
| Temperature effect on minimum dead load output |
≤ ± 0.03% F.S. / 10°C |
| Temperature effect on sensitivity |
≤ ± 0.03% F.S. / 10°C |
| Non-linearity |
≤ ± 0.03% F.S. |
| Hysteresis |
≤ ± 0.02% F.S. |
| Repeatabability |
≤ ± 0.02% F.S. |
| Creep error (30 minutes) |
≤ ± 0.02% F.S. |
| Rated output |
2.0 ± 1% mV/V |
| Zero balance |
≤ ± 2% F.S. |
| Excitation voltage |
5 ... 15 V DC |
| Input resistance |
385 ± 10 Ω |
| Output resistance |
385 ± 5 Ω |
| Insulation resistance (100 V DC) |
≥ 5000 MΩ |
| Safe load limit |
150% F.S. |
| Ultimate load |
200% F.S. |
| Compensated temperature range |
-10 ... +60°C |
| Operating temperature range |
-20 ... +80°C |
| Load cell material |
stainless steel |
| Cable size |
Φ5 × 3000 mm |
| Protection degree |
IP67 |
| Applications |
Hopper scale |
| |
Price tag scale |
| |
Quantitative device |
| |
Industrial scale |
| |
Laboratory Technology |
| |
Process technology |
|
|
|
| |
Features |
| |
• Measuring ranges from 20 kg to 1500 kg |
| |
• Stainless steel construction |
| |
• Welded-on metal bellows |
| |
• Simple installation |
| |
• High side load tolerance |
| |
• Protection class IP67 |
|
| |
| |
| |
|
