| Description |

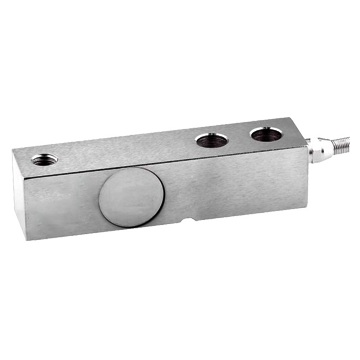

Series 6224 shear beam load cells are suitable for static and dynamic measuring requirements. They serve for determining shear forces in diverse fields of application.
Series 6220 shear beam load cells are made of alloy steel, whose properties are particularly suitable for the fields of application in scales, laboratory technology and stage construction.
The measuring force must be introduced through the centre and free of transverse force. When assembling the shear beam, care should be taken that the support surface is flat. |
| |
| Technical Specification |
| Type |
6224 |
| Name |
Shear Beams Load Cell |
| Measuring ranges |
0 ... 100 kg to 0 ... 10 t |
| Measuring principle |
Strain gauge |
| Temperature effect on minimum dead load output |
≤ ± 0.025% F.S. / 10°C |
| Temperature effect on sensitivity |
≤ ± 0.025% F.S. / 10°C |
| Non-linearity |
≤ ± 0.03% F.S. |
| Hysteresis |
≤ ± 0.03% F.S. |
| Repeatabability |
≤ ± 0.03% F.S. |
| Creep error (30 minutes) |
≤ ± 0.03% F.S. |
| Rated output |
2.0 ± 10% mV/V |
| Zero balance |
≤ ± 2% F.S. |
| Excitation voltage |
5 ... 15 V DC |
| Input resistance |
385 ± 10 Ω |
| Output resistance |
350 ± 5 Ω |
| Insulation resistance (100 V DC) |
≥ 5000 MΩ |
| Safe load limit |
150% F.S. |
| Ultimate load |
200% F.S. |
| Compensated temperature range |
-10 ... +60°C |
| Operating temperature range |
-20 ... +80°C |
| Load cell material |
alloy steel |
| Cable size |
Φ5 × 6000 mm |
| Protection degree |
IP65 |
| Applications |
Weighbridge |
| |
Quantitative Mechanism |
| |
Platform scale |
| |
Laboratory Technology |
| |
Stage construction |
|
|
|
| |
Features |
| |
• Measuring ranges from 100 kg to 10 t |
| |
• Alloy steel construction |
| |
• Long-term stability |
| |
• Simple installation |
| |
• High side load tolerance |
| |
• Protection class IP65 |
|
| |
| |
| |
|
