| Description |

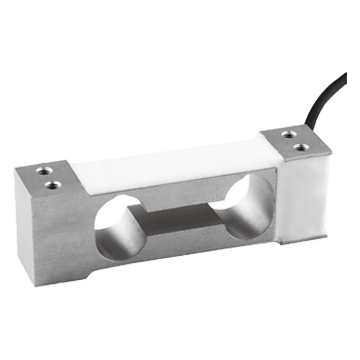

Series 6102 single point load cells are especially designed to be used in platform weighing. They can be mounted under the platform without any further construction or calibration processes.
The load cell is easy to operate due to its simple way of the force direction. It applied vertically to the load cell axis.
The load cells are to be mounted on an even surface. The permitted load direction is marked with an arrow symbol. |
| |
| Technical Specification |
| Type |
6102 |
| Name |
Single Point Load Cell |
| Measuring ranges |
0 ... 0,3 to 0 ... 10 kg |
| Measuring principle |
Strain gauge |
| Temperature effect on minimum dead load output |
≤ ± 0.025% F.S. / 10°C |
| Temperature effect on sensitivity |
≤ ± 0.025% F.S. / 10°C |
| Non-linearity |
≤ ± 0.02% F.S. |
| Hysteresis |
≤ ± 0.02% F.S. |
| Repeatabability |
≤ ± 0.02% F.S. |
| Creep error (30 minutes) |
≤ ± 0.02% F.S. |
| Rated output |
2.0 ± 10% mV/V |
| Zero balance |
≤ ± 2% F.S. |
| Excitation voltage |
5 ... 15 V DC |
| Input resistance |
410 ± 10 Ω |
| Output resistance |
350 ± 5 Ω |
| Insulation resistance (100 V DC) |
≥ 5000 MΩ |
| Safe load limit |
150% F.S. |
| Ultimate load |
200% F.S. |
| Compensated temperature range |
-10 ... +40°C |
| Operating temperature range |
-20 ... + 60°C |
| Load cell material |
aluminum alloy |
| Platform size |
200 × 200 mm |
| Cable size |
Φ3 × 450 mm |
| Protection degree |
IP 65 |
| Applications |
Small platform scale |
| |
Production line |
| |
Instrument manufacturing |
| |
Electronic scale |
| |
Test equipment |
| |
Industrial weighing system |
|
|
|
| |
Features |
| |
• Measuring ranges from 0,3 kg to 10 kg |
| |
• Aluminum alloy construction |
| |
• High accuracy |
| |
• Simple installation |
| |
• High side load tolerance |
| |
• Simple force introduction |
|
| |
| |
| |
|
