| Description |

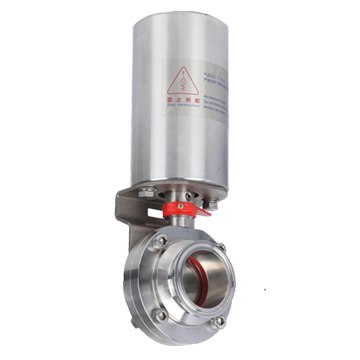

Series 2694 Butterfly valves in metal for shutting off and controlling media flows.
Based on the fact that the butterfly valve is available in various designs and in different materials, it meets the requirements of various applications and processes. |
| |
| Technical Specification |
| Type |
2694 |
| Name |
Butterfly valve |
| Orifice |
DN25 ... 100 |
| Body material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Disc material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Stem material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Seat material |
EPDM / PTFE / VITON |
| Pilot pressure |
5 ... 8 bar |
| Medium pressure |
Max. 10 bar |
| Process connection |
Weld end / Clamp / Thread |
| Medium temperature |
-30 ... +130°C |
| Ambient temperature |
5 ... 80°C |
| Applications |
Dairy factory |
| |
Brewery |
| |
Food industry |
| |
Pharmaceutical Engineering |
| |
Sterilization equipment |
|
|
|
| |
Features |
| |
• Orifice sizes DN25 ... 100 |
| |
• Pneumatic actuator |
| |
• High flow values |
| |
• Low torques |
| |
• Zero leakage |
| |
• Suitable for Hygienic industry |
|
| |
| |
| |
|
