| Description |

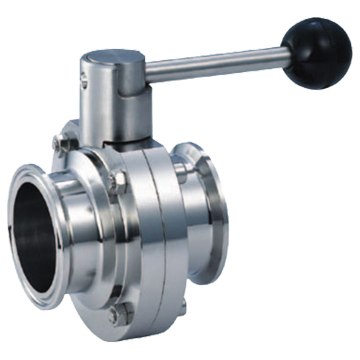

Series 2693 Butterfly valves in metal for shutting off and controlling media flows.
Based on the fact that the butterfly valve is available in various designs and in different materials, it meets the requirements of various applications and processes. |
| |
| Technical Specification |
| Type |
2693 |
| Name |
Butterfly valve |
| Orifice |
DN25 ... 100 |
| Body material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Disc material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Stem material |
Stainless steel 304 / Stainless steel 316 / Stainless steel 316L |
| Seat material |
EPDM / PTFE / VITON |
| Shell testing pressure |
24 bar |
| Medium pressure |
Max. 16 bar |
| Process connection |
Weld end / Clamp / Thread |
| Medium temperature |
-30 ... +130°C |
| Top flange |
ISO 5211 |
| Applications |
Dairy factory |
| |
Brewery |
| |
Food industry |
| |
Pharmaceutical Engineering |
| |
Sterilization equipment |
|
|
|
| |
Features |
| |
• Orifice sizes DN25 ... 100 |
| |
• Shut off pressure up to 16 bar |
| |
• High flow values |
| |
• Low torques |
| |
• Zero leakage |
| |
• Suitable for Hygienic industry |
|
| |
| |
| |
|
