| Description |

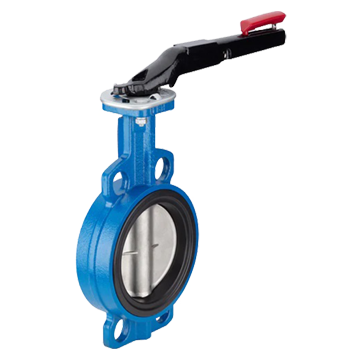

Series 2651 Butterfly valves in metal for shutting off and controlling media flows.
Based on the fact that the butterfly valve is available in various designs and in different materials, it meets the requirements of various applications and processes. |
| |
| Technical Specification |
| Type |
2651 |
| Name |
Butterfly valve |
| Orifice |
DN40 ... 600 |
| Body material |
Ductile iron / Cast iron / Stainless steel 304 / Stainless steel 316 |
| Disc material |
Stainless steel 304 / Stainless steel 316 |
| Stem material |
Stainless steel 410 / Stainless steel 304 / Stainless steel 316 / Stainless steel 630 |
| Seat material |
EPDM / FKM / PTFE / VITON |
| Shell testing pressure |
24 bar |
| Medium pressure |
Max. 16 bar |
| Installation |
Wafer flange |
| Medium temperature |
EPDM: -20 ... +110°C；FKM: -10 ... +160°C； |
| Top flange |
ISO 5211 |
| Applications |
Oil industry |
| |
Chemical industry |
| |
Metallurgical Industry |
| |
Machinery manufacturing |
| |
Test equipment |
| |
General industry |
|
|
|
| |
Features |
| |
• Orifice sizes DN40 ... 600 |
| |
• Shut off pressure up to 16 bar |
| |
• Unique stem retaining mechanism for easy maintenance |
| |
• Low pressure drop, minimum turbulence |
| |
• Abrasion and corrosion resistant |
| |
• Lever or Pneumatic / Electric actuator |
|
| |
| |
| |
|
